5-3-3

Release 5-3-3

In this release we introduce a new module.

  1. Fridge Door Module:

This module enables you to track the doors’ status of your fridge or any other vehicle having door sensors installed.

To start getting benefit from this module, the partner should have “Fridge Door” license so he can grant it to the company along with “Fridge Door” module and permissions (recall: a module and its corresponding permissions are automatically granted to the company at first license granting).

fridge door license includes the following features:

  1. module configuration

  2. door status on monitoring page

  3. door status in vehicle timeline

  4. fridge door open info report

  5. fridge door explorer

Now, let’s give each feature some details.

  1. module configurations:

like any other module, you can access fridge door module configurations from the modules page. configurations are divided into two steps

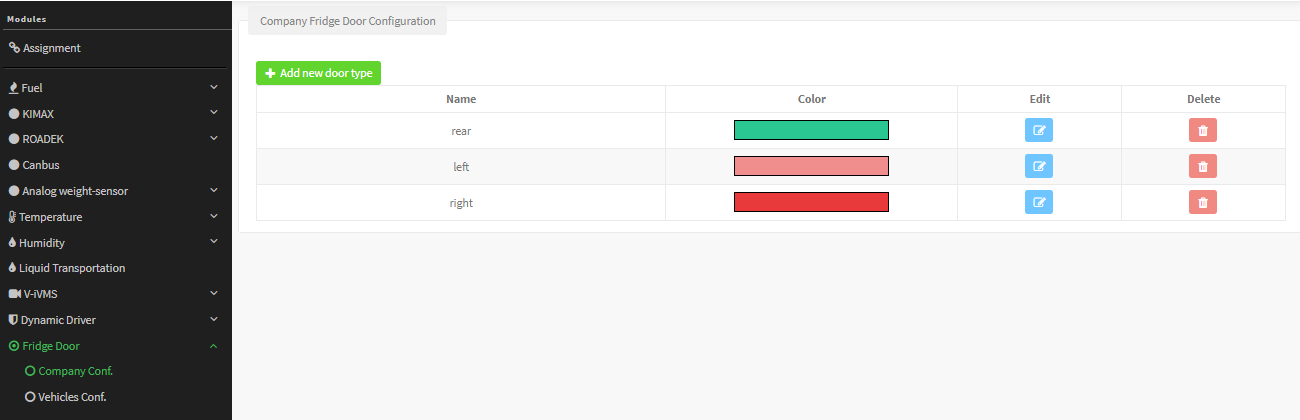

a. company configurations: where you can add door sensors corresponding to the sensors in-use in reality. you can add up to 8 sensors.

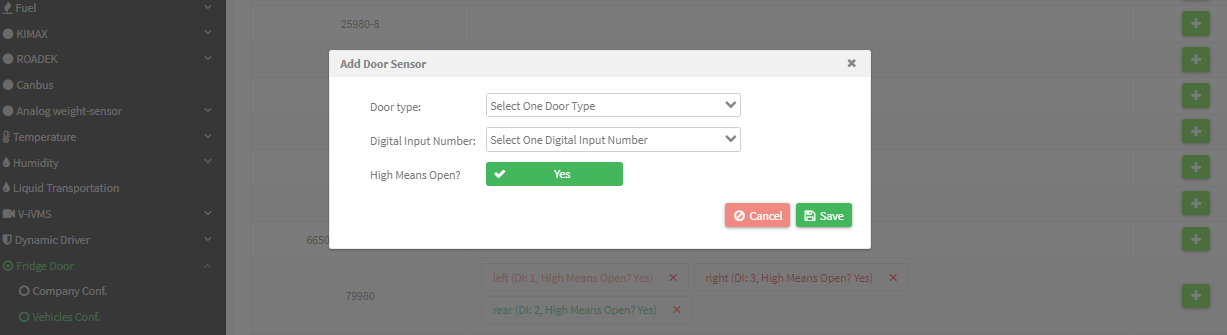

b. vehicle configurations: where you can match the sensors you’ve created to the AVL digitals inputs they are connected to.

  1. door status on monitoring page:

for faster review, you can check the latest doors status in the messages table on the monitoring page. the doors will appear as colored buttons where the color indicates the door status;

  • green door means it’s open

  • red door means it’s closed

  • gray door means the status is unavailable.

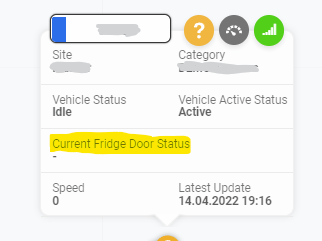

you can also have the doors status on the card info. of each vehicle.

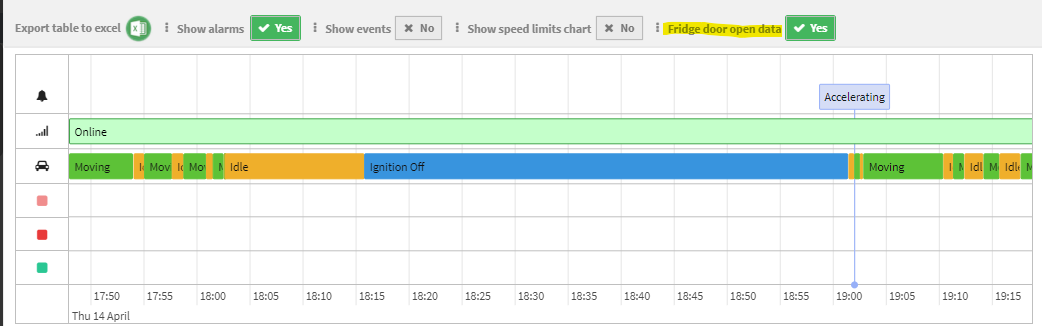

  1. door status in vehicle timeline:

once the vehicle has the “fridge door” module, the door status will be shown in the vehicle timeline.

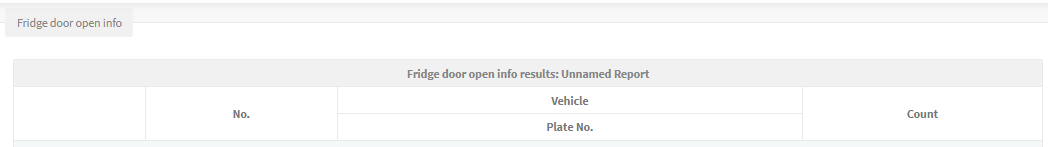

  1. fridge door open info report:

this report shows you opened doors over a period of time. all you need to do is to select your time range along with the target doors and generate the report.

  1. fridge door explorer

like all other explorers, fridge door explorer shows you the latest state of vehicles’ door. in addition to the possiblity to display the history of the doors over a period of time up to a week. recall: you always can reaarange the colums of the explorers to fit your needs.
